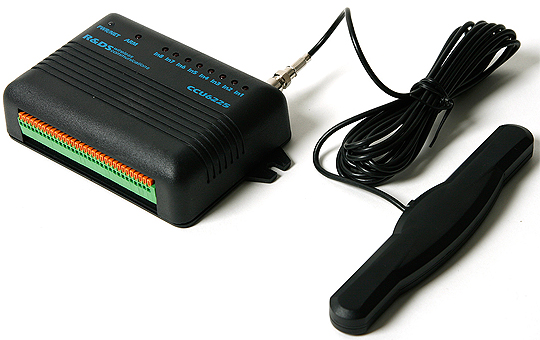

GSM controller CCU6225 is a solution for the most demanding clients.  It combines all the most popular and the most sophisticated data transmission technologies: voice notification, DTMF control with voice notifications and SMS notification.

An in-built Touch Memory controller allows one tfo identify a user by the key and to transfer his/her name to the other owners by SMS.

Eight analogue discrete outputs, two relays and five controllable outputs place CCU6225 in the same range as professional telematics systems. The system has the most flexible configuration of components available nowadays, so that the user can easily adjust it to his/her own needs using special PC software.

An in-built GSM modem/module eliminates all the problems connected with climate conditions and ensures the utmost reliability.

Main features

• Flexibly adjustable system of access restriction for eight telephone numbers allows the client to give access only to registered users whose numbers are in the list. For each number it is possible to define only such events for which the information is needed.
• The universal adjustable "ARM" input allows the client to connect a button or a contact for identification of the Touch memory key. The module of recognition of Touch memory keys allows one to identify the user right at access and to send a key code or a name to specified numbers in SMS format.
• DTMF management with voice prompting allows users to control the system using DTMF signals during voice connection and to receive voice confirmations, similarly to the GSM client service. Each connection session starts with the password input, which allows the client not only to identify the user by a phone number, but also to protect the system.
• The system may be managed by SMS in a dialogue mode, with performance acknowledgements. CCU6225 uses a set of commands for the remote control. Names are assigned to all the inputs, relays and outputs. The user can program managing messages himself, using a set of commands and names. Each command message starts with a password. Depending on the settings, CCU6225 creates a confirmation message, so that the user is always aware of the current state of the system.
• SMS notification. When detecting the active level at inputs or in case of an emergency system event (a voltage drop, etc.), CCU6225 sends an emergency text message to specified numbers.
• Voice messaging at dialling. CCU6225 dials the specified numbers and creates relevant voice messages in case of detection of an active level at inputs or in case of an emergency system event. Upon hearing the message either the connection may be broken or the controller may be taken under control, which allows the user to react adequately to an alarm notification.
• Test messages are meant for periodic testing of the system. The system allows the client to assign up to four definite moments of time when the controller will automatically create a voice or an SMS message informing the user of the current condition of the system.
• Audio-bugging of the protected premises can be initiated either by an SMS command or during a DTMF session. CCU6225 will then establish voice connection with the sender of the SMS or will initiate an external microphone directly, upon receipt of a DTMF-command.
• Ample opportunities of event routing. An input being in an active or a passive mode can influence a relay or an output condition. It is possible to program the influence of any input on relays and outputs. The system being changed to ARM or DISARM mode may also influence the condition of relays and outputs. This allows the client to use relays in various configurations, for instance, for switching on the siren or for the automatic reset of fire sensors.
• It is possible to assign names for inputs and relays. Each input and each relay has a name which is used for condition inquiries and for the remote control. Each input has a name for the active and the passive condition of the system. For example, if a movement sensor in a room 1 has switched on, the user will receive the following SMS message: “ROOM1 MOVE”. The names are fully programmable by the user.
• Each of the eight inputs can be configured independently as follows:
• the name of the sensor, the name of a sensor’s active and passive mode;
• alarm zone limits: the zone’s bottom and top limits define voltage interval within which the input is considered active;
• input type: analogue/discrete;
• 6 input modes of the active level: low, not connected, high etc.;
• average time of input signal;
• alarm message sending delay;
• scan recovery time;
• round-the-clock control of fire detectors, water and gas leak detectors, alarm detectors, etc.;
• an action to undertake in case of an active level of an input: either voice dialling, or an SMS, or both dialling and an SMS, or connection through the external microphone, or no actions;
• relay influence.
• Each of the 2 relays and 5 outputs are configured independently as follows:
• the name;
• the commutation type: a level or an pulse, duration of an impulse;
• SMS and/or DTMF management enabled/disabled.
• Voltage drop and backup battery discharge notifications. CCU6225 creates an SMS message and/or dials specified phone numbers in case of a voltage drop and/or recovery and also in case of discharge of a backup battery up to a specified critical level.

Technical specification

• a built-in GSM module (GSM900 / 1800MHz / 1900Mhz);
• 8 Inputs (zones);
• Programmable entry levels (6 modes);
• Programmable zone names;
• 7 Outputs:
• 2 realys;
• 4 "open collector" type outputs, GND, loading 0, 5A / 12V;
• 1 "open collector" type output, submits + 12V, current limited 0,9A.
• Programmable output names;
• 8 numbers for:
• voice calling;
• SMS sending;
• voice calling and SMS sending.
• Controlled by:
• DTMF commands;
• SMS commands.
• The voice module is built-in;
• Voice messages in the voice module can be programmed through PC;
• There is an option of connecting an external microphone;
• An option for temperature measurement;
• The controller has an option of connecting an external "ARM" button or a contact for identification of the Touch memory key DS1990A, for switching between the modes "ARM / DISARM";
• Programmable via USB or RS-232 (Com port).

Main package contents

• CCU6225
• GSM antenna
• CD with software and user's manual
• Cable for programming controller via PC

Additional accessories (may be ordered for an extra payment)

• RTD-02 temperature sensor
• RMA-02 external microphone
• touch memory reader
• touch memory key/keys
• metal box with transformer and power supply
